Do you know what VLANs are?
No???

Philippe Etchebest saying oh merde — time to learn VLANs

Never too late: quick refresher.

Network plan

Segment the LAN so uses stay isolated and blast radius stays small. Five VLANs:

  • VLAN_Guests — fully isolated: no talk to other VLANs, internet via VPN only. Useful when people visit.
  • VLAN_Admin — containers, VMs, hypervisor services. A private cloud, basically.
  • VLAN_Secure — same idea as guests, with extra distrust. Do not mix risky devices with the rest.
  • VLAN_Personal — PCs, consoles, phones.
  • VLAN_IOT — IoT. By default they talk neither to each other nor to the internet.

Copy this and adapt the tags if you want:

vlans.txt
VLAN_IOT       tag 35   10.66.35.0/24   prefix-id 3
VLAN_Personal  tag 40   10.66.40.0/24   prefix-id 2
VLAN_Secure    tag 45   10.66.45.0/24   (no IPv6)
VLAN_Admin     tag 50   10.66.50.0/24   prefix-id 1
VLAN_Guests    tag 66   10.66.66.0/24   (no IPv6)
LAN                     10.66.10.0/24   prefix-id 0
DNS / gateway           10.66.10.1

VLANs

Interfaces → Devices → VLAN. Parent must be the LAN NIC (igb0 or igc0). Then Interfaces → Assignments: add each VLAN and name it VLAN_Admin, VLAN_Personal, etc.

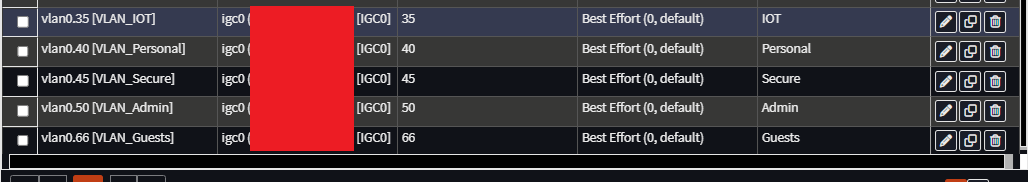

Screenshot: VLAN devices
OPNsense VLAN devices list for guests, admin, secure, personal and IoT

Interface settings

For each VLAN, Interfaces → [VLAN_XXXXX]:

  • Uncheck block private networks and block bogon networks
  • IPv4: Static IPv4 — 10.66.TAG.1/24
  • IPv6: Track Interface — except VLAN_Secure and VLAN_Guests (leave on None)
IPv6 track settings

Under Track IPv6 Interface: parent WAN, unique prefix ID (see vlans.txt above).

Also set the DHCPv6 prefix ID on LAN.

In System → Settings → General, uncheck “Prefer to use IPv4 even if IPv6 is available”.

DHCP

A network without DHCP is sad. Services → ISC DHCPv4 → [VLAN_XXXXX], on every VLAN:

dhcp.txt
Enable DHCP server
Range:  10.66.TAG.2 – 10.66.TAG.254
DNS:    10.66.10.1

VLAN_Secure and VLAN_Guests get a different DNS story in a later article. For now they can still point at 10.66.10.1.

Firewall

Keep it simple. Idea:

  1. Floating: block all outbound by default (no internet, no east-west, until you pass something).
  2. WAN: established traffic in/out, nobody on the internet uses our DNS.
  3. LAN: allow all (management network).
  4. Per VLAN: explicit exceptions.

Handy alias for “is this private?” — invert it to match the rest of the internet:

alias-rfc1918.txt
192.168.0.0/16
10.0.0.0/8
172.16.0.0/12

Firewall → Aliases, then the rules.

Screenshots: WAN, LAN, alias, VLANs, floating

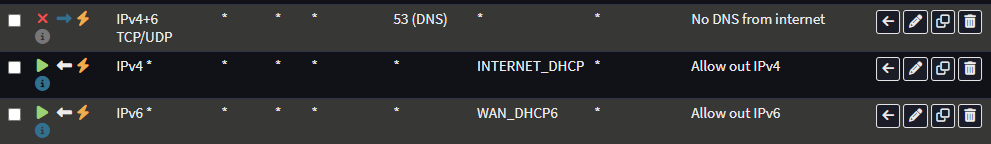

WAN — stop outside IPs from using our DNS; allow legitimate inbound/outbound. INTERNET_DHCP is probably WAN_DHCP on your box (or INTERNET_DHCP if you followed the m720q write-up).

OPNsense WAN firewall rules allowing established traffic and blocking external DNS

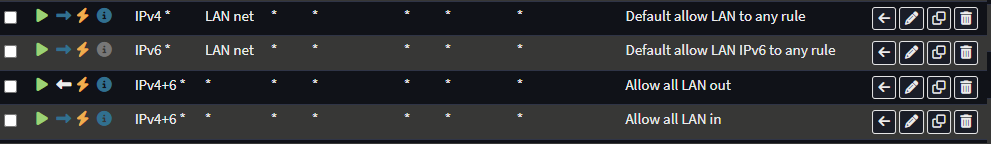

LAN — allow all packets, in and out.

OPNsense LAN firewall rules allowing all traffic

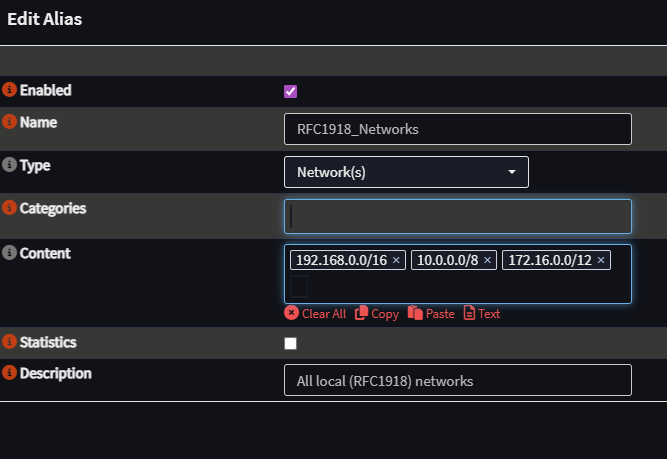

Alias

OPNsense alias covering RFC1918 private ranges

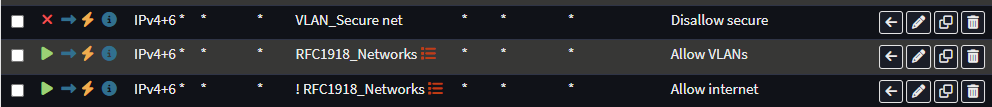

VLAN_Personal — no talk to VLAN_Secure; access to the others; internet allowed.

OPNsense firewall rules for the personal VLAN

VLAN_Admin — allow all, in and out.

OPNsense firewall rules for the admin VLAN

VLAN_Guests — no other VLANs, no internet for now.

OPNsense firewall rules isolating the guest VLAN

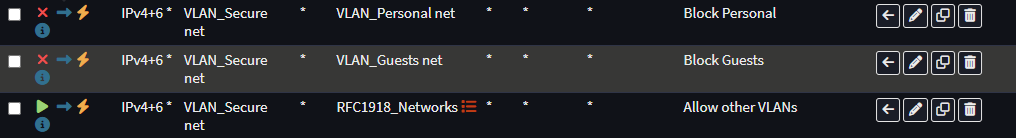

VLAN_Secure — no VLAN_Guests, no VLAN_Personal, no internet for now.

OPNsense firewall rules isolating the secure VLAN

Floating — block all outbound by default. That is what holds internet and other devices until an explicit pass exists.

OPNsense floating firewall rules blocking outbound traffic by default

DNS

Unbound as a small Pi-hole: ads, malware, some content. Plus DNS rebinding protection and DNS over TLS.

Services → Unbound DNS.

Private ranges (Advanced tab) — copy as-is:

unbound-private.txt
0.0.0.0/8 10.0.0.0/8 100.64.0.0/10 169.254.0.0/16 172.16.0.0/12 192.0.2.0/24 192.168.0.0/16 198.18.0.0/15 198.51.100.0/24 203.0.113.0/24 233.252.0.0/24 ::1/128 2001:db8::/32 fc00::/8 fd00::/8 fe80::/10

Blocklists I use (decent coverage vs false positives):

unbound-blocklists.txt
AdGuard List
OSID - Domain Blocklist Ads
Steven Black List

Push this DNS to clients: Services → ISC DHCPv4 → VLAN_Personal (and others you care about), DNS server 10.66.10.1. Next lease picks it up.

Screenshots: Unbound and DHCP DNS

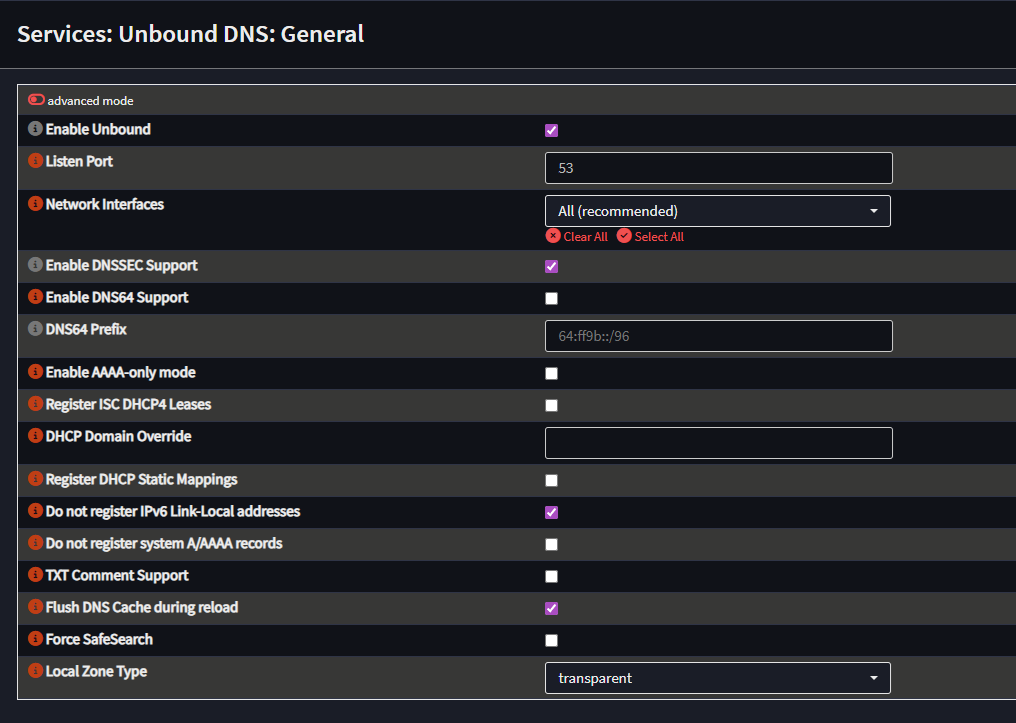

General — Overrides is where local records will go later (private cloud).

OPNsense Unbound DNS general settings

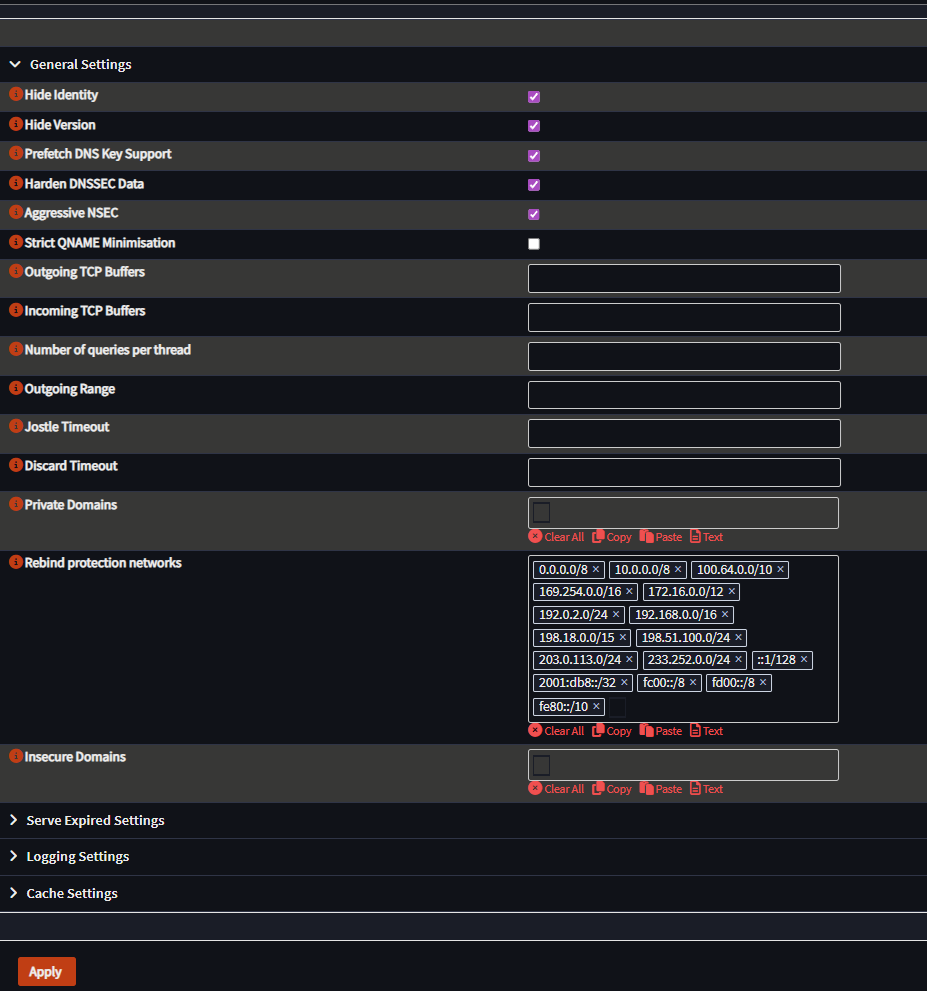

Advanced — paste the private ranges.

OPNsense Unbound DNS advanced private-address settings

Blocklists — add a list, pick the three above, leave the other fields empty.

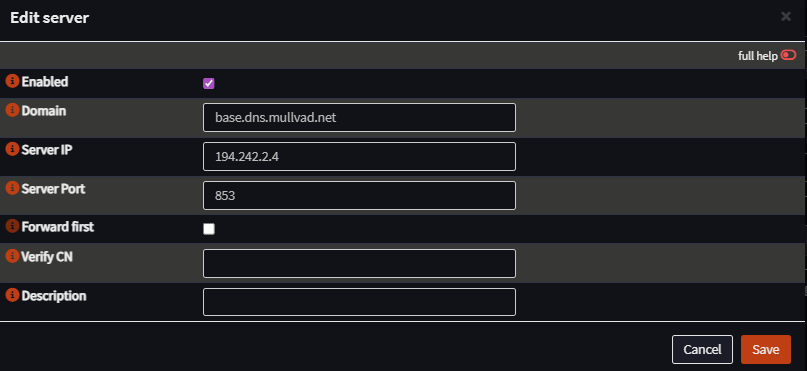

DNS over TLS — Mullvad resolvers here; we reuse them later for the always-on VPN.

OPNsense Unbound DNS-over-TLS forwarders using Mullvad

Then reboot the firewall, or restart Unbound (top right).

ISC DHCPv4 DNS server set to the OPNsense LAN address

Next

Admin VPN, remote access, and firewall hardening
